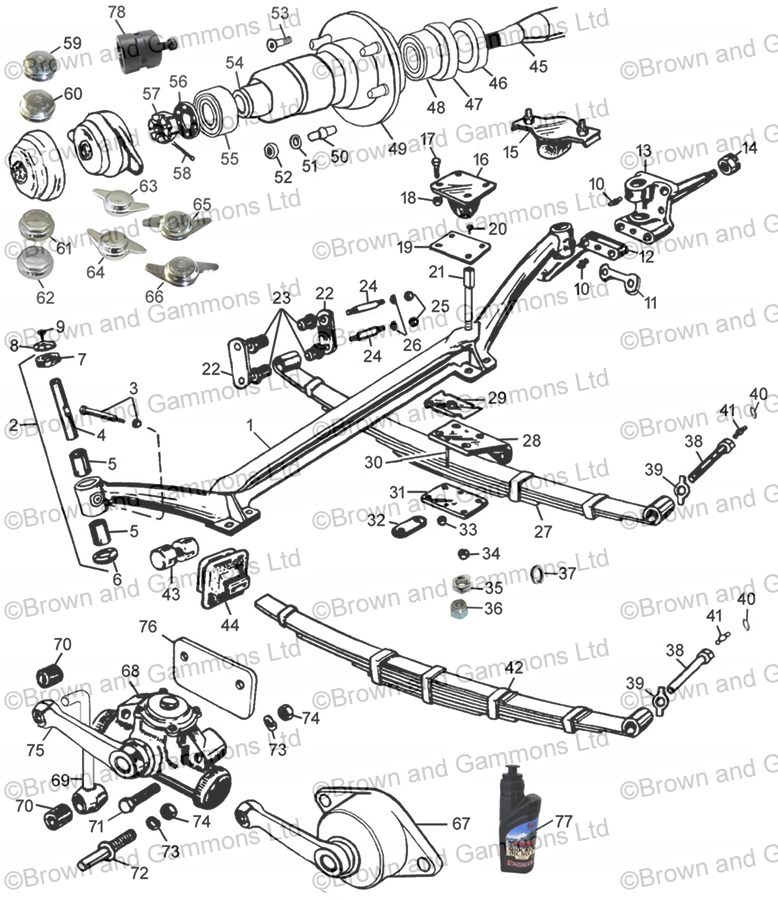

Front suspension & Front shock absorbers

Item

Description

Action

TC FRONT AXLE BEAM - RECON

Product Code: 81499E

We occasionally have reconditioned front axles available on an exchange basis - but this is entirely dependable on the condition of the customers own unit

£480.00

£400.00 ex. VAT

each x

KING PIN kit TB TC Pair

Product Code: AAA572K

£143.94

£119.95 ex. VAT

SET x

KING PIN KIT TA FLANGED BUSHES

Product Code: TA502K

£209.94

£174.95 ex. VAT

each x

Cotter pin & nut TA-TC king pin

Product Code: MG374

£13.14

£10.95 ex. VAT

each x

USE MG374

Product Code: MG374/1

Has been superseded by

Cotter pin & nut TA-TC king pin

Product Code: MG374

£13.14

£10.95 ex. VAT

each x

KING PIN ONLY LATE TA TB TC

Product Code: AAA572

£43.20

£36.00 ex. VAT

each x

TB-TC King pin bush plain

Product Code: 100481

£21.54

£17.95 ex. VAT

each x

TB-TC King pin bush plain

Product Code: 100481

£21.54

£17.95 ex. VAT

each x

THRUST WASHER TC KINGPIN

Product Code: ATB4089

£12.90

£10.75 ex. VAT

each x

FELT WASHER TOP OF TC KINGPIN

Product Code: ATB4091

£3.42

£2.85 ex. VAT

each x

KINGPIN TOP PLATE TC

Product Code: ATB4092

£14.39

£11.99 ex. VAT

each x

SET SCREW 1/4 INCH BSF x 5/8 INCH

Product Code: AJD6155

£1.02

£0.85 ex. VAT

each x

USE AJD6155

Product Code: ATB4090

Has been superseded by

SET SCREW 1/4 INCH BSF x 5/8 INCH

Product Code: AJD6155

£1.02

£0.85 ex. VAT

each x

45 Deg Grease Nipple

Product Code: UHN145

£1.50

£1.25 ex. VAT

each x

LOCKTAB-STEERING ARM TA-TC

Product Code: 26613

£14.60

£12.17 ex. VAT

each x

Steering arm - RH - NLA

Product Code: 100033

Steering arm LH - NLA

Product Code: 100034

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

Use 101207-8

Product Code: 101207/8

Has been superseded by

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

HUB BRG NUT LH THREAD 5/8 INCH BSF

Product Code: AJD8310N

£18.11

£15.09 ex. VAT

each x

HUB BRG NUT RH THREAD 5/8 INCH BSF

Product Code: AJD8410N

£11.10

£9.25 ex. VAT

each x

FRONT BUMP STOP TA

Product Code: TA108

£69.90

£58.25 ex. VAT

each x

BUMP STOP FRONT TC

Product Code: 23448

£16.74

£13.95 ex. VAT

each x

SET SCREW 3/8 INCH UNF X 0.875 INCH

Product Code: SH606071

TB uses 4

£0.47

£0.39 ex. VAT

each x

USE BSF3750NZ

Product Code: AJD8136

Has been superseded by

3/8 INCH BSF NYLOC NUT

Product Code: BSF3750NZ

£0.56

£0.47 ex. VAT

each x

3/8 INCH BSF NYLOC NUT

Product Code: BSF3750NZ

£0.56

£0.47 ex. VAT

each x

NYLOC NUT 3/8 INCH UNF (PACK 10)

Product Code: GHF223

Has been superseded by

NYLOC NUT 3/8 INCH UNF (PACK 10)

Product Code: NY606041

£0.24

£0.20 ex. VAT

Pack of 10 x

High Tensile Nyloc Nut 3/8 UNF

Product Code: GHF223HT

£1.06

£0.88 ex. VAT

each x

Buffer Pad Plate TA-TC (black finish)

Product Code: 95169

£21.54

£17.95 ex. VAT

each x

Screw 1/4 BSF x 5/8 CSK

Product Code: AJD4405

Buffer plate to bolt

£1.02

£0.85 ex. VAT

each x

BOLT-FRT AXLE-SPRING TTYPE

Product Code: AAA863

£21.42

£17.85 ex. VAT

each x

PLATE FOR FRT SHACKLE TC

Product Code: 99564

£56.90

£47.42 ex. VAT

each x

PLATE FOR FRT SHACKLE TC

Product Code: 99564

£56.90

£47.42 ex. VAT

each x

SHACKLE BUSH T TYPE

Product Code: ACA5242

£1.14

£0.95 ex. VAT

each x

Shackle pin and nut TC-TD-TF

Product Code: AAA848

£12.64

£10.53 ex. VAT

each x

Shackle pin and nut TC-TD-TF

Product Code: AAA848

£12.64

£10.53 ex. VAT

each x

NUT 7/16 INCH BSF x 3/8 INCH WHIT

Product Code: AJD8107

£0.72

£0.60 ex. VAT

each x

SPRING WASHER 7/16 INCH

Product Code: GHF334

£0.24

£0.20 ex. VAT

each x

FRONT SPRING TC

Product Code: 99546

£135.00

£112.50 ex. VAT

each x

BRKT RH FRT SHOCKER TA-TC

Product Code: 83747

£93.66

£78.05 ex. VAT

each x

BRKT LH FRT SHOCKER TA-TC

Product Code: 83748

£93.66

£78.05 ex. VAT

each x

TA-TB-TC Front axle caster plate

Product Code: 3667

Can be fitted to TB & early TC from chassis TC425

£33.50

£27.92 ex. VAT

each x

USE BGT102

Product Code: 83749

Has been superseded by

Rear spring stud TA TB TC

Product Code: BGT102

£4.20

£3.50 ex. VAT

each x

Rear spring stud TA TB TC

Product Code: BGT102

£4.20

£3.50 ex. VAT

each x

PLATE-FRT SPRING MOUNTING TA-C

Product Code: 81746

£27.30

£22.75 ex. VAT

each x

PLATE-REIN FRT SPRING MTG TA-C

Product Code: 81747

£9.05

£7.54 ex. VAT

each x

NUT 1/4 INCH BSF HEX C/F ZINC

Product Code: AJD8104

Locating stud

£0.25

£0.21 ex. VAT

each x

NYLOC NUT 1/4 INCH BSF

Product Code: AJD8134

Locating stud - alternative

£0.70

£0.58 ex. VAT

each x

NUT 5/16 INCH BSF HEX

Product Code: AJD8105

Nut - axle to spring bolt

£0.30

£0.25 ex. VAT

each x

5/16 BSF NYLOC NUT

Product Code: BSF3125NZ

Nut - axle to spring bolt - alternative

£0.70

£0.58 ex. VAT

each x

SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06 ex. VAT

Pack of 10 x

S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10 ex. VAT

each x

FRONT SPRING PIN TA-TC

Product Code: AAA552

£22.68

£18.90 ex. VAT

each x

TA-TB-TC Front spring bolt lock tab

Product Code: 81692

£5.40

£4.50 ex. VAT

each x

SPRING WASHER 1/2 INCH

Product Code: GHF335

£0.24

£0.20 ex. VAT

each x

Straight Grease Nipple

Product Code: UHN105

£1.14

£0.95 ex. VAT

each x

FRONT SPRING TA TB

Product Code: TA785

£153.90

£128.25 ex. VAT

each x

BRONZE FRONT TA TRUNNION PAIR

Product Code: TA633

£45.30

£37.75 ex. VAT

PAIR x

FRONT TRUNNION COVER TA

Product Code: TA803

£20.14

£16.78 ex. VAT

each x

USE 101207-8

Product Code: 101207

Has been superseded by

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

Use 101207-8

Product Code: 101207/8

Has been superseded by

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

USE 101207-8

Product Code: 101208

Has been superseded by

TC STUB AXLES PAIR

Product Code: 101207-8

£720.00

£600.00 ex. VAT

each x

CONE OIL SEAL FRT HUB TATC

Product Code: 84488

£23.28

£19.40 ex. VAT

each x

OIL SEAL FRONT HUB TA TB TC

Product Code: 3265

£4.74

£3.95 ex. VAT

each x

TAPER ROLLER BRG INNER TA-TC

Product Code: 30205

£18.00

£15.00 ex. VAT

each x

TA/TB/TC wheel bearing TD/TF gearbox rear bearing

Product Code: 6205

£13.14

£10.95 ex. VAT

each x

HUB FRONT RH TA-TC

Product Code: 81563

£107.94

£89.95 ex. VAT

each x

HUB FRONT LH TA-TC

Product Code: 81564

£107.94

£89.95 ex. VAT

each x

FRONT HUB STUD TA-TC

Product Code: 100519

£6.24

£5.20 ex. VAT

each x

SPRING/WSH SM/END C/ROD XPAG

Product Code: CA1283

Lockwasher - hub stud

£0.30

£0.25 ex. VAT

each x

NUT BRAKE DRUM 3/8 INCH BSF TA B C

Product Code: AJD8206

£0.34

£0.28 ex. VAT

each x

USE AJD8206

Product Code: AJD8206N

Has been superseded by

NUT BRAKE DRUM 3/8 INCH BSF TA B C

Product Code: AJD8206

£0.34

£0.28 ex. VAT

each x

SCREW CSK BRAKE DRUM TA-TC

Product Code: AAA303

£0.90

£0.75 ex. VAT

each x

SPACER FOR BRG T TYPE

Product Code: AAA228

£35.59

£29.66 ex. VAT

each x

BRG. TAPER ROLLER OUTER TATC

Product Code: 30304

£17.36

£14.47 ex. VAT

each x

TD-TF Y MGA Front wheel bearing small

Product Code: 6304

£10.74

£8.95 ex. VAT

each x

WASHER BRG RETAINING TA-TC

Product Code: 101262

£20.10

£16.75 ex. VAT

each x

HUB BRG NUT LH THREAD 5/8 INCH BSF

Product Code: AJD8310N

£18.11

£15.09 ex. VAT

each x

HUB BRG NUT RH THREAD 5/8 INCH BSF

Product Code: AJD8410N

£11.10

£9.25 ex. VAT

each x

SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

Product Code: GHF504

£0.22

£0.18 ex. VAT

Pack of 10 x

12TPI KNOCK-ON NUT TYPE RH

Product Code: AHH7315

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE LH

Product Code: AHH7316

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE RH 'MG'

Product Code: AHH7315MG

£31.80

£26.50 ex. VAT

each x

12TPI KNOCK-ON NUT TYPE LH 'MG'

Product Code: AHH7316MG

£31.80

£26.50 ex. VAT

each x

12TPI Knock-on eared RH MGA & T (no logo)

Product Code: AHH7317

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared LH MGA & T (No logo)

Product Code: AHH7318

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared RH MGA & T (With logo)

Product Code: AHH7317MG

£31.44

£26.20 ex. VAT

each x

12TPI Knock-on eared' LH MGA & T (With logo)

Product Code: AHH7318MG

£31.42

£26.19 ex. VAT

each x

FRT SHOCK ABS NEW 'LUVAX RH TA

Product Code: TA505

£402.00

£335.00 ex. VAT

each x

FRT SHOCK ABS NEW 'LUVAX LH TA

Product Code: TA506

£402.00

£335.00 ex. VAT

each x

SHOCK ABSORBER FRONT RH TC NEW

Product Code: 99608

Has been superseded by

REBUILD - TC RH FRONT SHOCK C.O.U

Product Code: 99608E

£117.00

£97.50 ex. VAT

each x

REBUILD - TC RH FRONT SHOCK C.O.U

Product Code: 99608E

£117.00

£97.50 ex. VAT

each x

SHOCK ABSORBER FRONT LH TC NEW

Product Code: 99609

Has been superseded by

REBUILD - TC LH FRONT SHOCK C.O.U.

Product Code: 99609E

£117.00

£97.50 ex. VAT

each x

REBUILD - TC LH FRONT SHOCK C.O.U.

Product Code: 99609E

£117.00

£97.50 ex. VAT

each x

LINK SHOCK ABSORBER TA-TC

Product Code: AJJ401

£62.80

£52.33 ex. VAT

each x

Damper arm bush- TA-TB-TC-TD

Product Code: AJJ402

£6.30

£5.25 ex. VAT

each x

BOLT S/ABS TO CHASSIS FRONT TB TC

Product Code: AJD6420

£4.34

£3.62 ex. VAT

each x

TC SHOCK ABS. PINWASHER & NUT

Product Code: X32428

£21.18

£17.65 ex. VAT

SET x

NUT 7/16 INCH BSF x 3/8 INCH WHIT

Product Code: AJD8107

£0.72

£0.60 ex. VAT

each x

SPRING WASHER 7/16 INCH

Product Code: GHF334

£0.24

£0.20 ex. VAT

each x

PLATE SHOCKER MOUNTING TB-TC

Product Code: 99615

£23.99

£19.99 ex. VAT

each x

PENRITE SHOCK OIL NO1 500M

Product Code: GGL9038X

£7.20

£6.00 ex. VAT

each x

42mm 8TPi Hub Puller tool

Product Code: 42MMHUBTOOL

£144.00

£120.00 ex. VAT

each x

Products not on diagram

LINK FRONT GIRLING SHOCKER TC ONLY

Product Code: 300004

£29.40

£24.50 ex. VAT

each x
